Shower Trays

Access™ Tray Plinth Kit

Plinth Kit for Access™ Tray

  • Designed for when plumbing connections cannot be recessed into the floor
  • Fast and low cost alternative to constructing a plinth
  • Easy access via removable panels
  • Corner or alcove installation


Sturdy support legs which can be easily adjusted by hand to set the tray level.

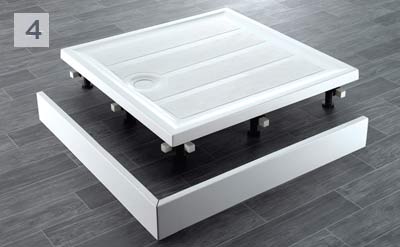

Snapshot of installation before panels.

Reversible panels.

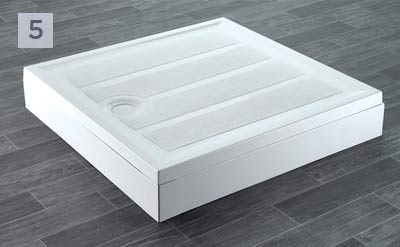

Finished Installation.

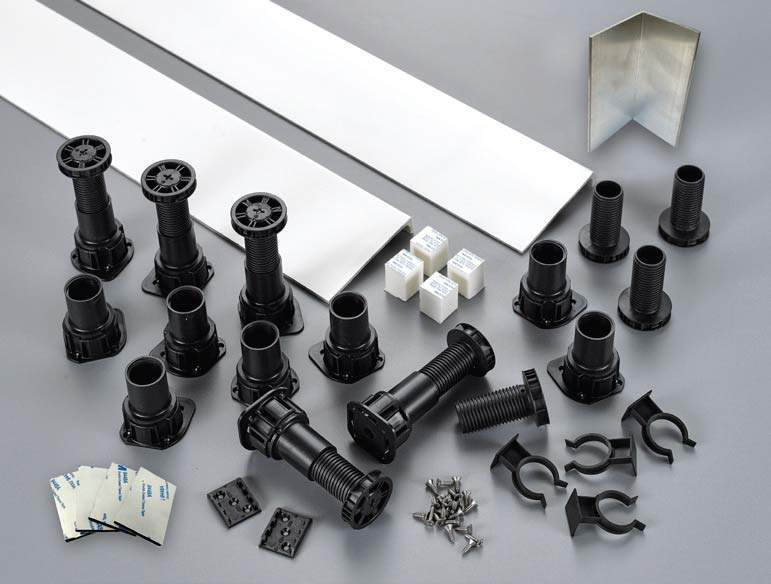

The Plinth Kit consists of:

  • # x Adjustable Support Legs (quantity depends on tray size)
  • Side panels (depending on the size and configuration of the tray)
  • 8 x Side Panel Mounting Brackets (photo no. 2)
  • 8 x Side Panel Self-Adhesive Mounting Spacers (photo no. 2)
  • Mounting screws

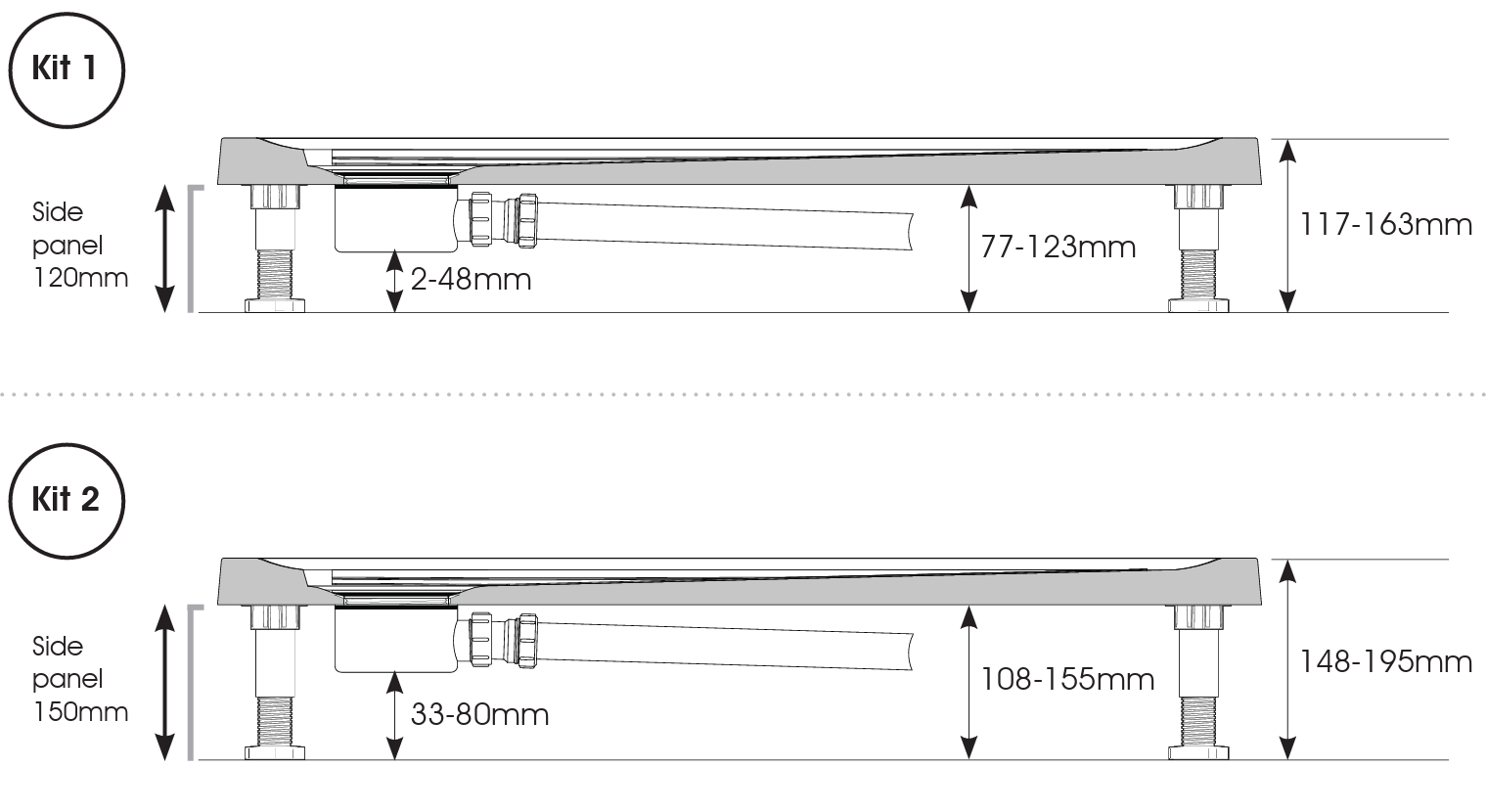

The overall height of the plinth can be reduced by trimming the bottom of the side panels along their entire length and adjusting the feet to be lower. However, the amount of this reduction will be limited by the height of the waste that is used.

Plinth Kit Tray product sizes

Product code Description Configuration
EFPK000003 Plinth kit 1 Corner
EFPK000003A Plinth kit 1 Alcove
EFPK000004 Plinth kit 2 Corner
EFPK000004A Plinth kit 2 Alcove
EFPK000005 Plinth kit 3 Corner
EFPK000005A Plinth kit 3 Alcove
